Jaw Crusher
Custom Mechanism Design

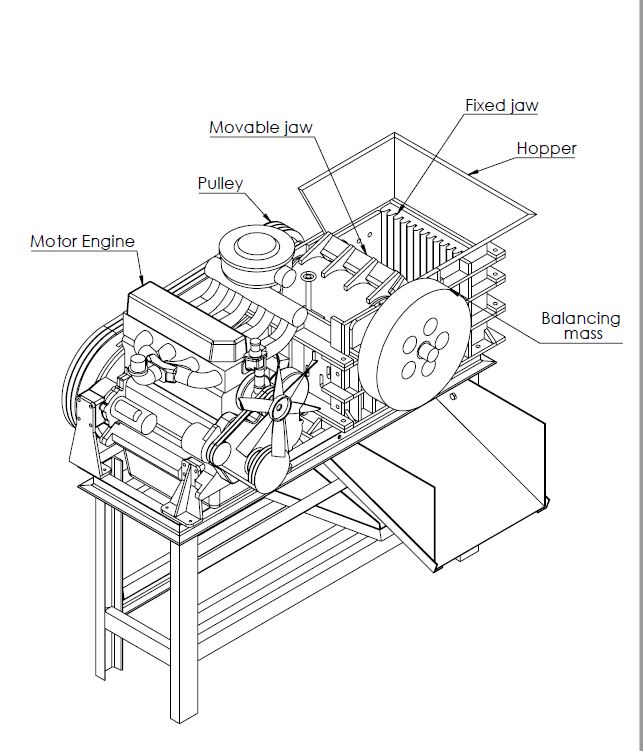

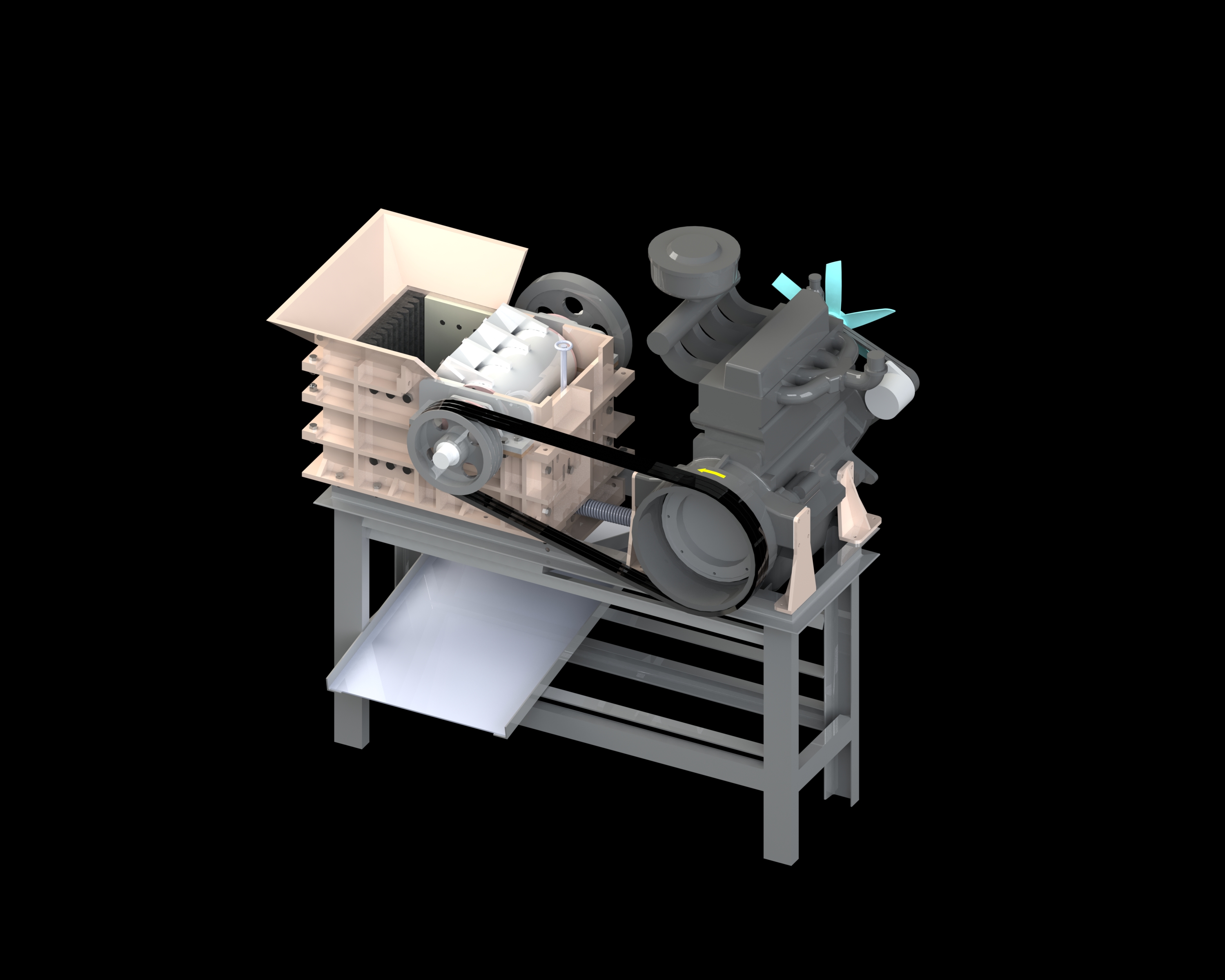

Jaw Crushers are heavy machines used to impart an impact on a rock particle placed between a fixed and a moving jaw. It uses compressive force and consists of a set of vertical jaws, one stationary (Fixed jaw) and other moving (Swing jaw), one eccentric shaft for cam mechanism, cylindrical roller bearings, pulley, balancing mass, motor engine and framing.
| S.N. | Parts Name | Description | Quantity |
|---|---|---|---|
| 1 | Cylindrical roller bearing | ID: 110mm | 2 |
| ID: 90mm | 2 | ||
| 2 | Electric Motor | 1 | |
| 3 | Large pulley | 1 | |
| 4 | Small pulley | 12 inch | 1 |
| 5 | Working volume | 0.02 to 0.03 m3 | |
| 6 | Total Weight | 2 to 3 ton | |
| 7 | Capacity | ||
