Belt Conveyor Belt Conveyor Belt Conveyor
Belt Conveyor

Belt Conveyor

Product Specifications

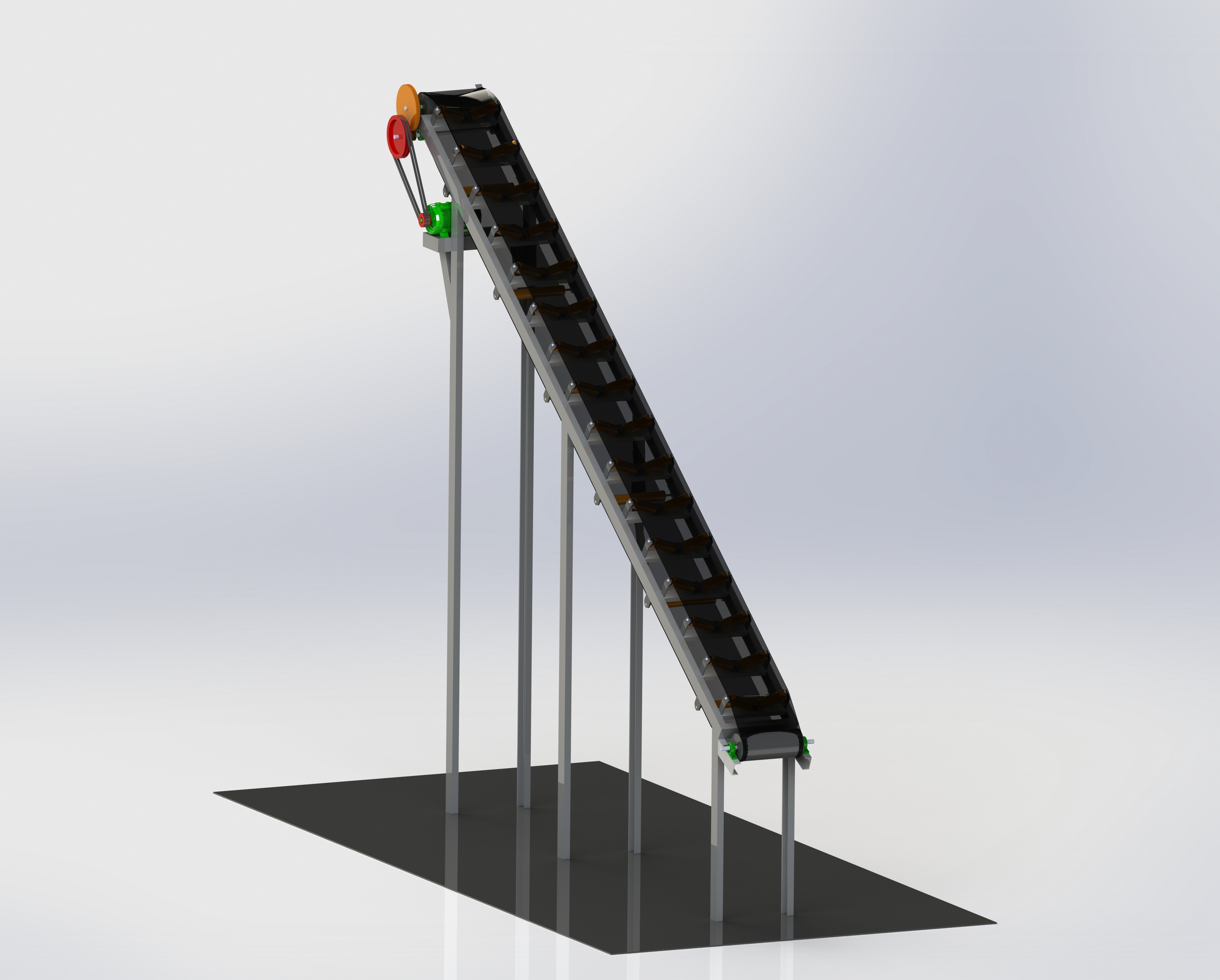

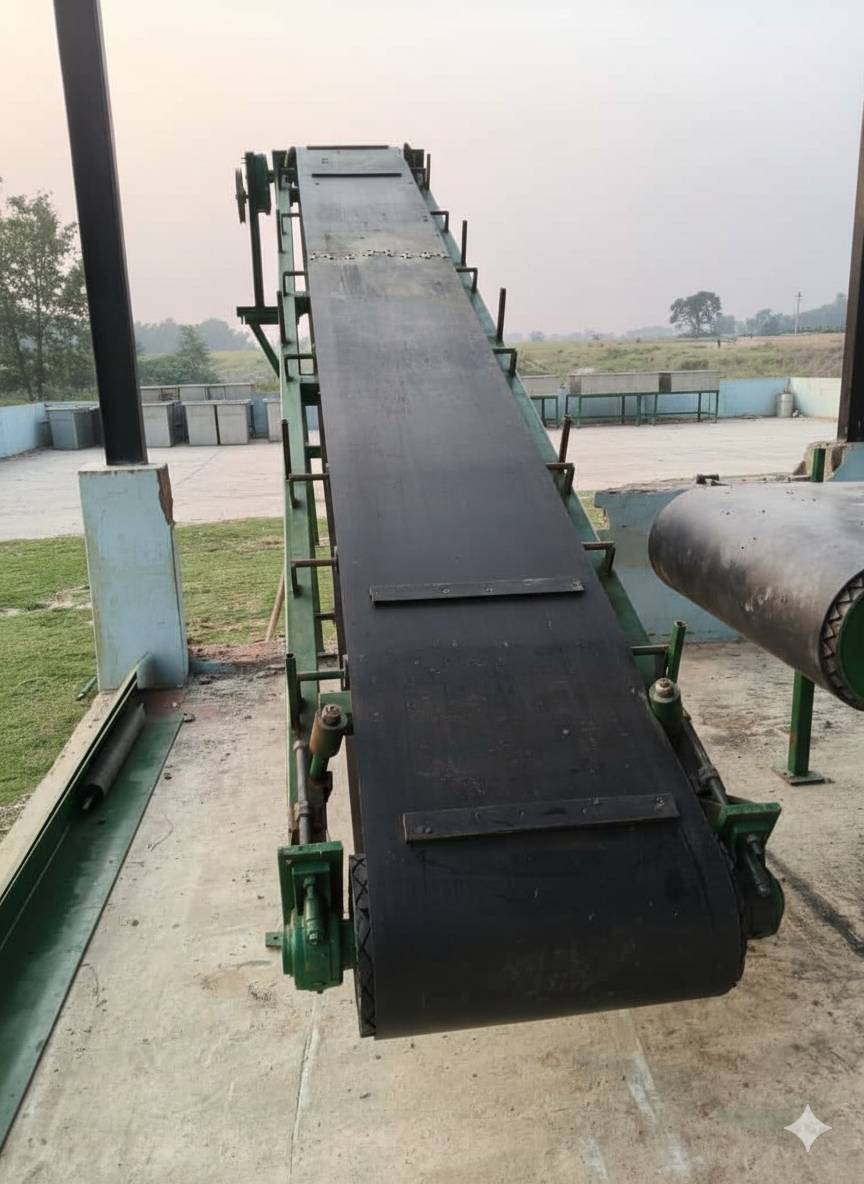

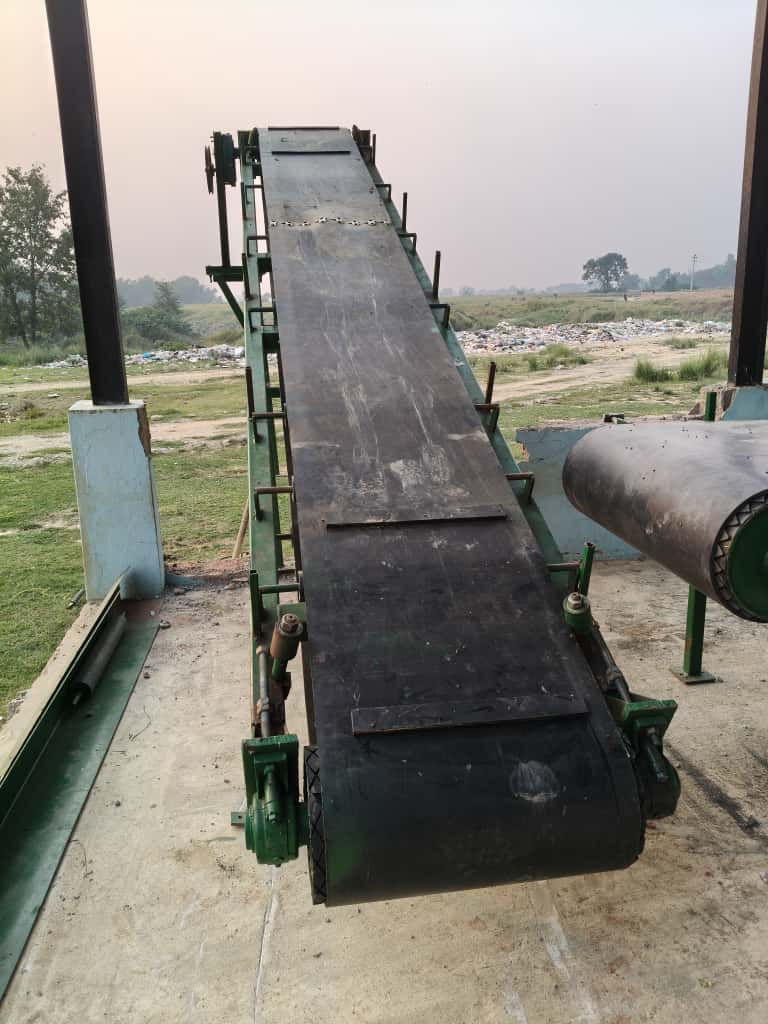

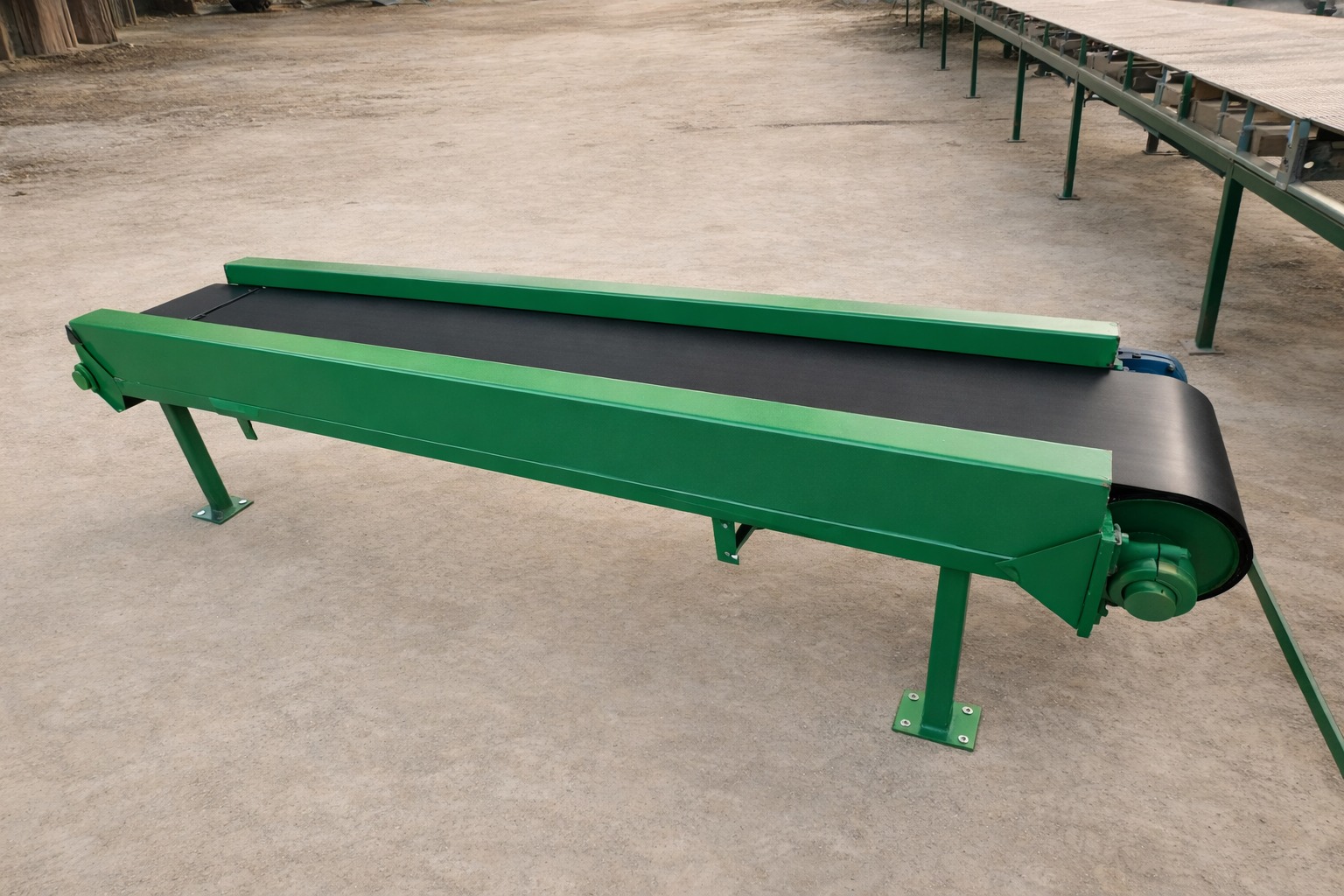

Our Belt Conveyor System is a reliable and efficient solution for smooth material transportation across industries. Designed for durability and performance, it ensures safe, continuous movement of goods while reducing manual effort and improving operational efficiency. Customizable in size and capacity, it is ideal for manufacturing, warehousing, food processing, and commercial applications.

How It Works

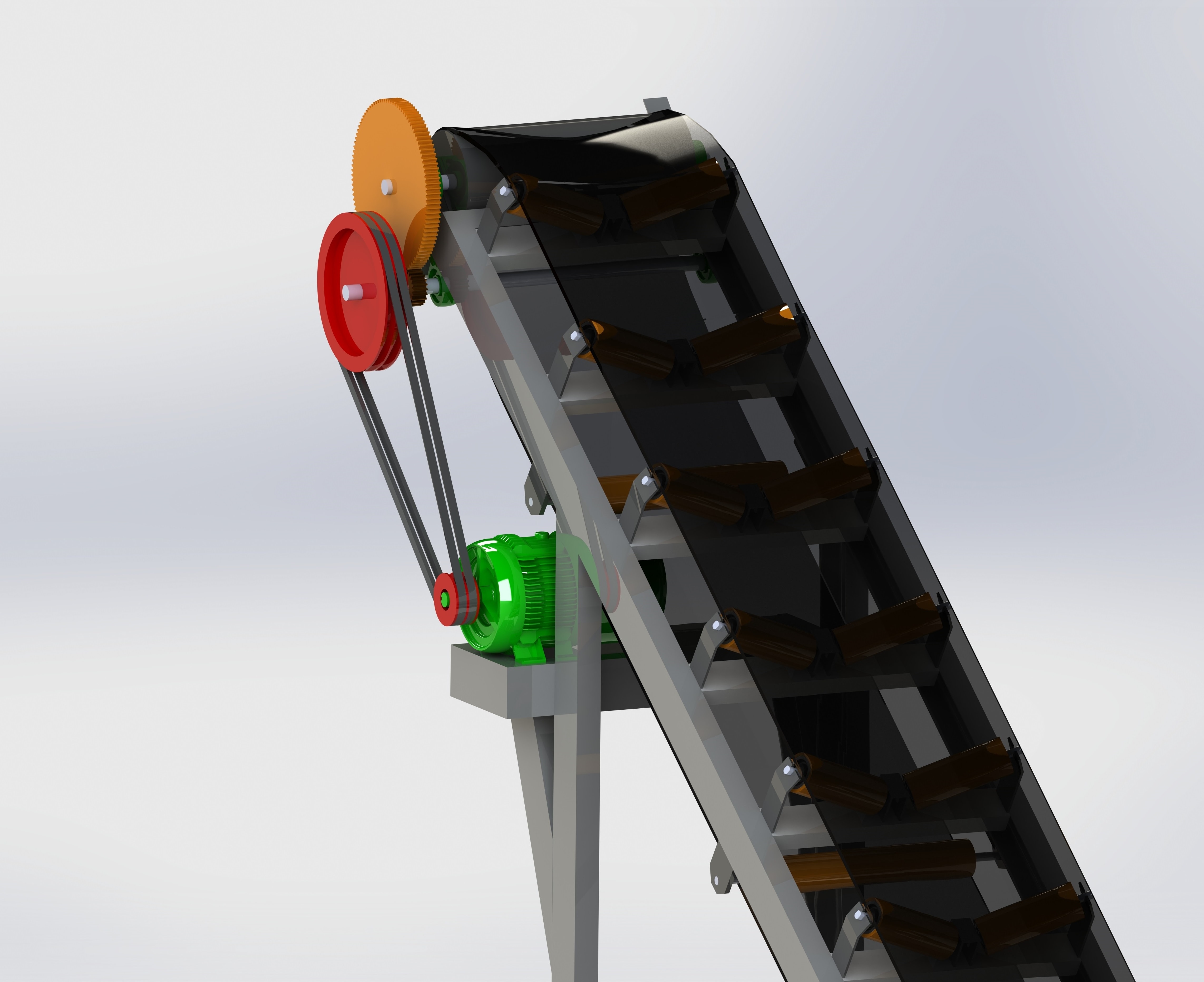

The Belt Conveyor operates using a motor-driven pulley system that moves a continuous belt loop. Materials are placed on the moving belt, which transports them smoothly from one point to another. The system ensures controlled, stable, and efficient movement of goods with minimal manual handling and maximum safety.



S.N Specification Description
1 Belt Type PVC / Rubber / Food-Grade
2 Belt Width 300 mm – 1000 mm (Customizable)
3 Conveyor Length 2 m – 20 m (As Required)
4 Load Capacity 50 kg – 200 kg per meter
5 Speed 0.5 – 2 m/s (Adjustable)
6 Motor Power 1 HP – 5 HP (Single / Three Phase)
7 Frame Material Mild Steel / Stainless Steel
8 Drive Type Motorized Pulley / Geared Motor
9 Voltage 220V / 415V
10 Application Industrial / Warehouse / Food Processing
